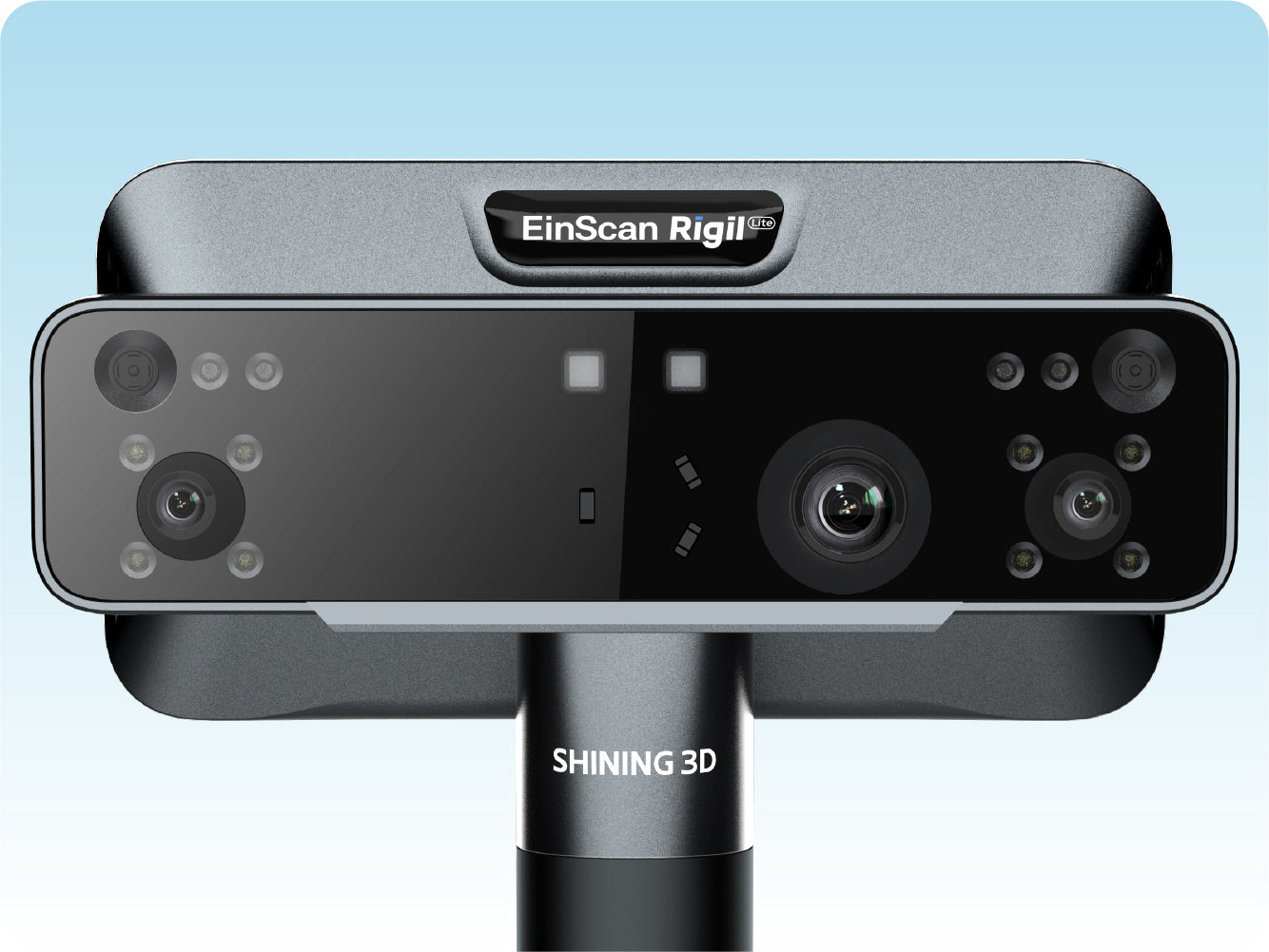

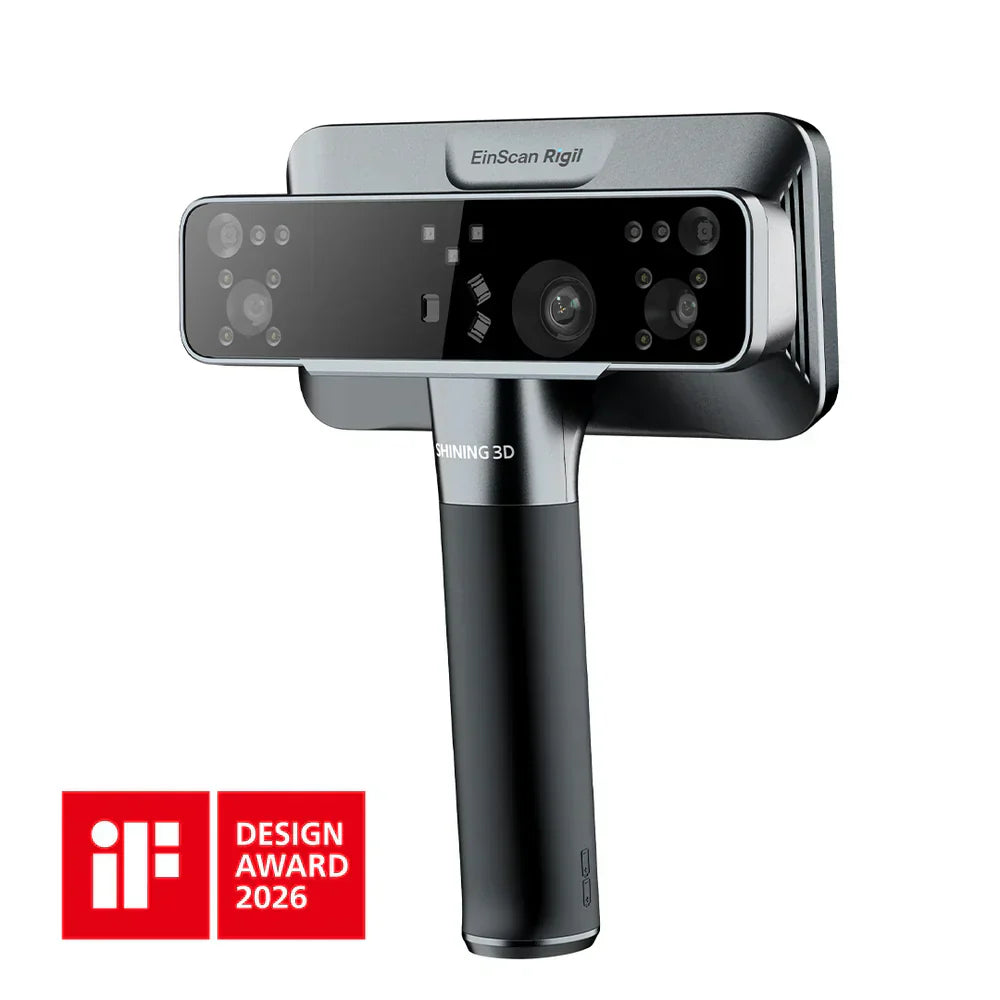

EinScan Rigil Wireless 3D Scanner - SHINING 3D

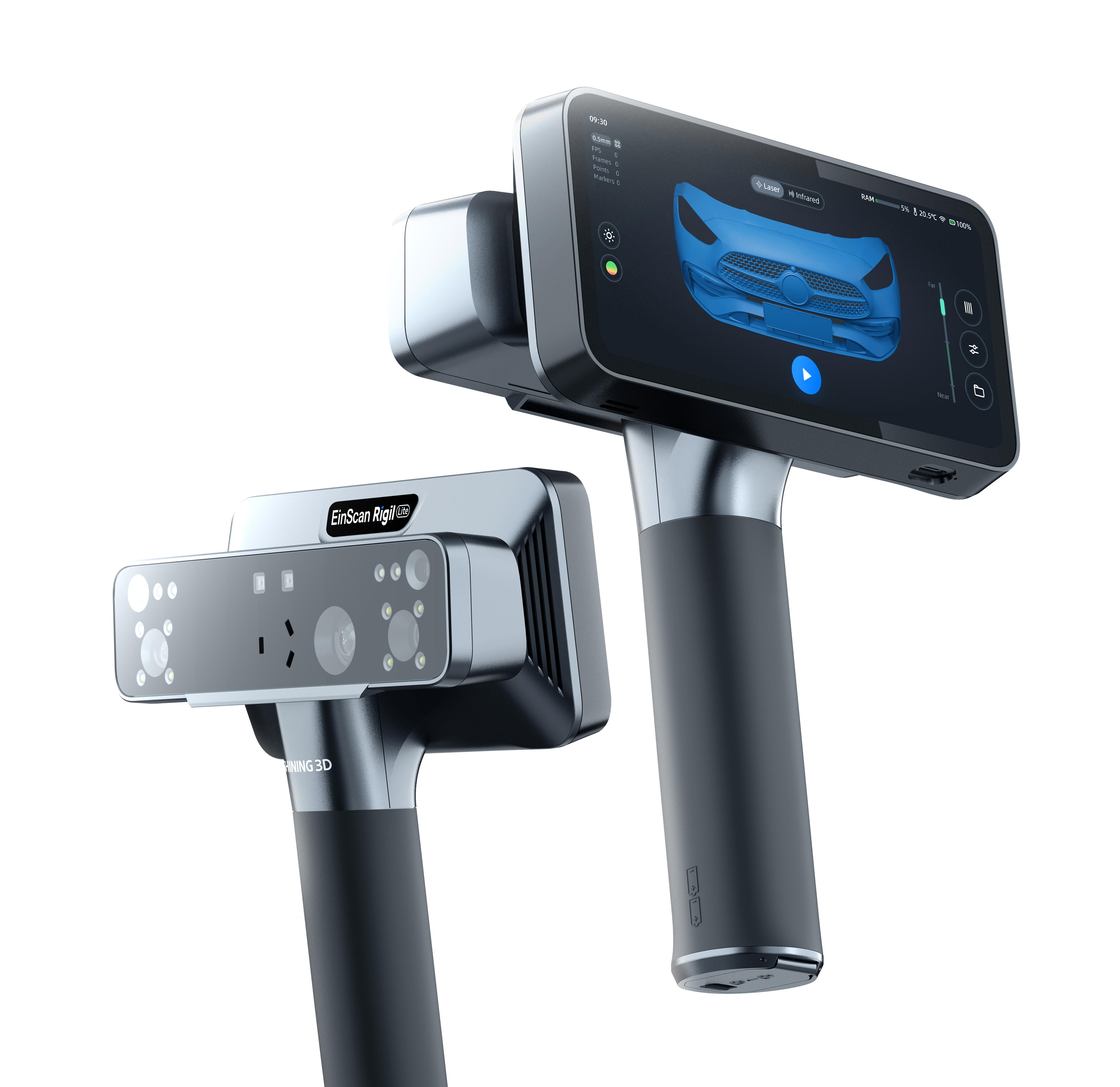

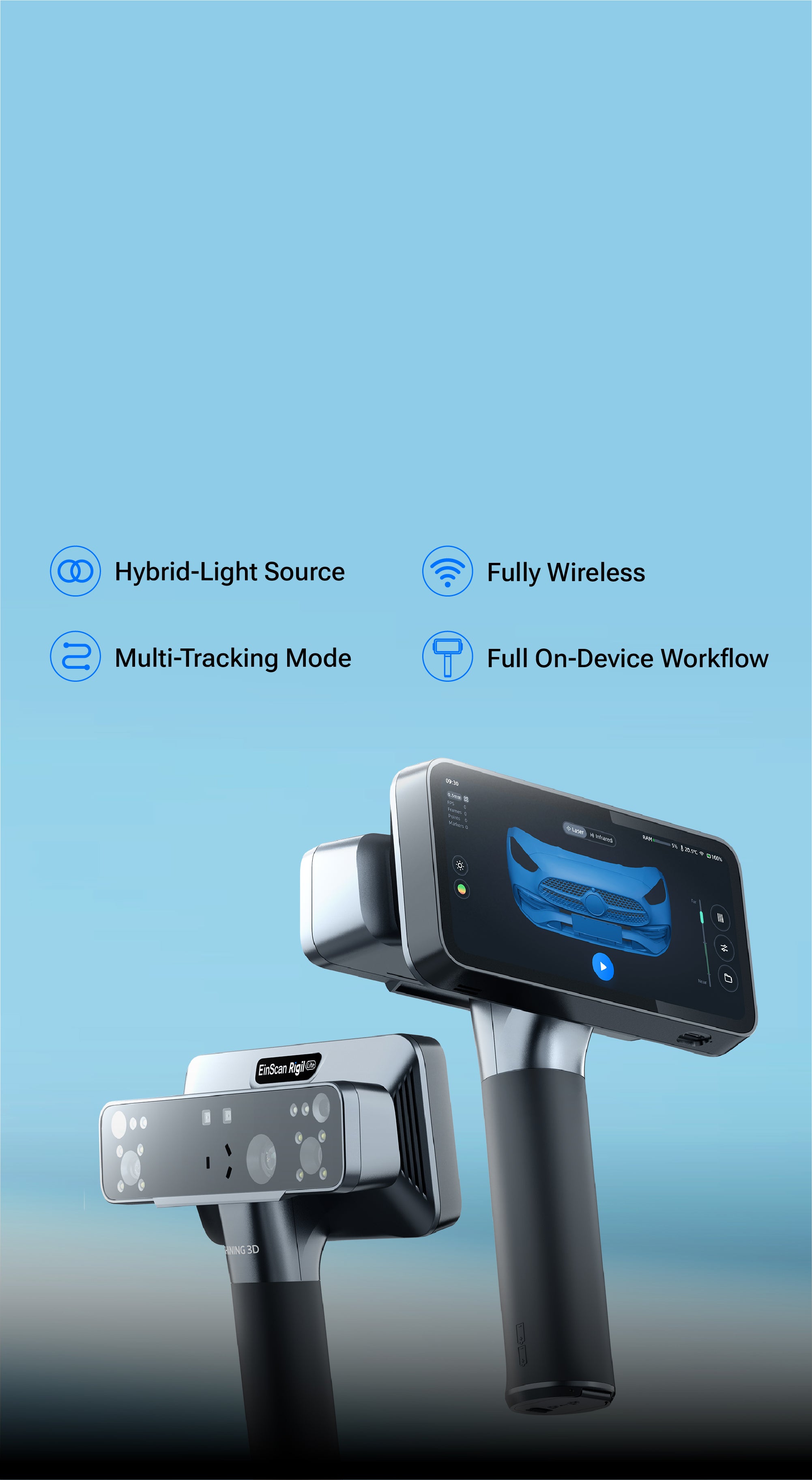

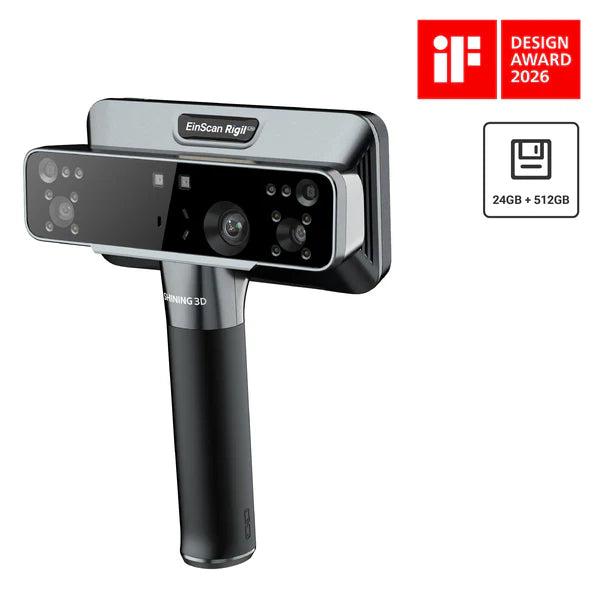

The SHINING 3D EinScan Rigil is a groundbreaking tri-mode 3D scanner that merges professional-grade precision with total mobility. By combining blue laser, infrared VCSEL, and an onboard 8-core processor, it delivers a cable-free, standalone experience. With metrology-grade accuracy and a 5MP texture camera, it excels in capturing everything from intricate mechanical parts to large-scale objects, even in direct sunlight or on dark, reflective surfaces without needing spray.
Tri-Mode Technology: Seamlessly switches between Blue Laser (detail), Infrared (speed), and Standalone (wireless) modes.
Metrology Precision: Delivers 0.05mm resolution and volumetric accuracy up to 0.04mm + 0.06mm/m.

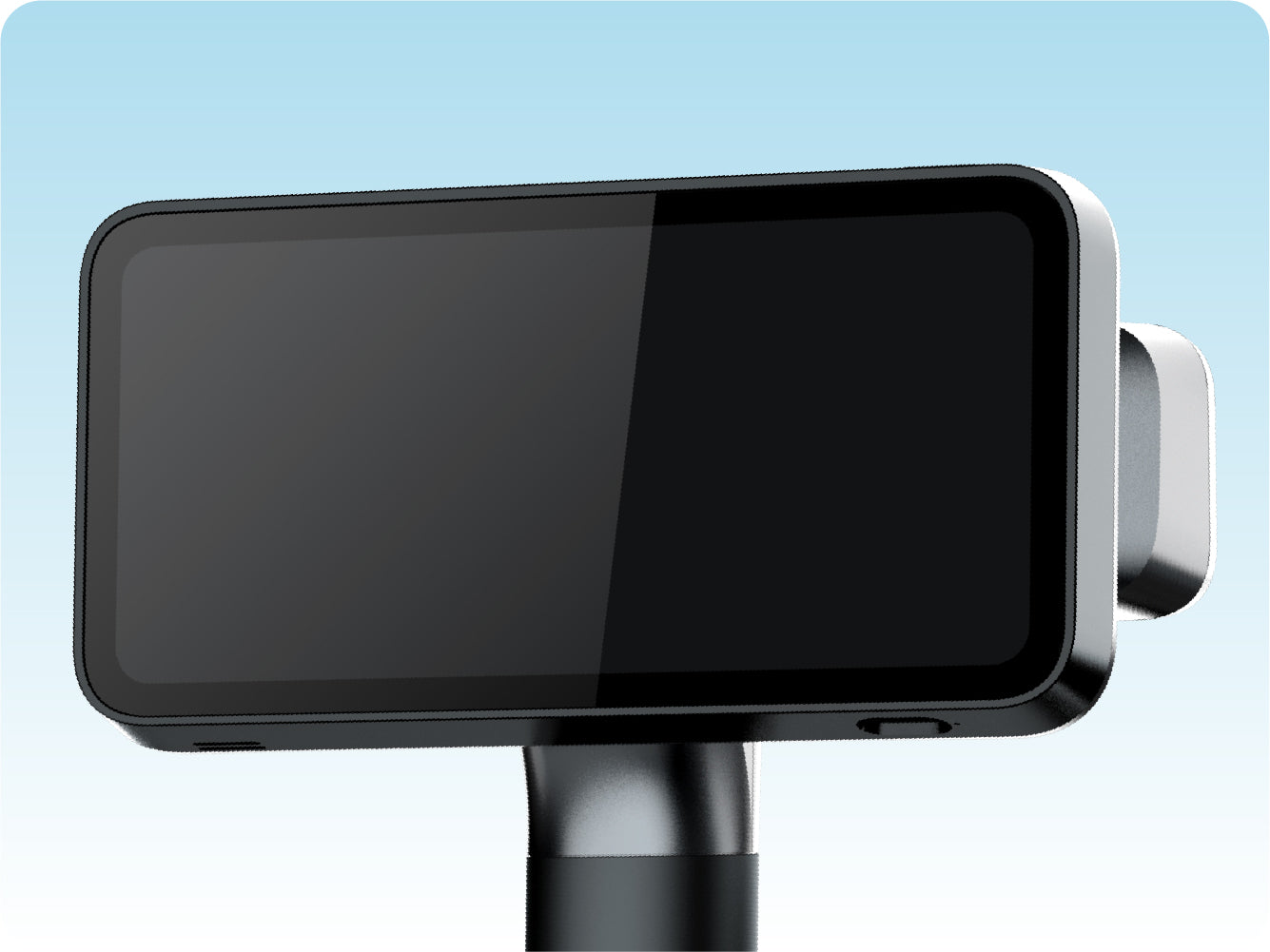

Built-in Intelligence: Features an integrated 6.4" 2K AMOLED screen, 1TB SSD, and 32GB RAM for PC-free scanning.
Marker-Free Workflow: Advanced tracking algorithms allow for high-speed laser scanning without physical targets.
Versatile Environments: Designed for "anywhere" use—works in outdoor sunlight and on dark or shiny metal surfaces.
High-Speed Capture: Processes up to 4,400,000 points per second, significantly reducing project turnaround time.
All-in-One Standalone Workflow:
Powered by an 8-core processor and a 6.4-inch 2K AMOLED touchscreen, the Rigil Lite handles complex processing on-device. With 24GB RAM and 512GB SSD, you can scan, view, and edit models in the field without tethering to a laptop.

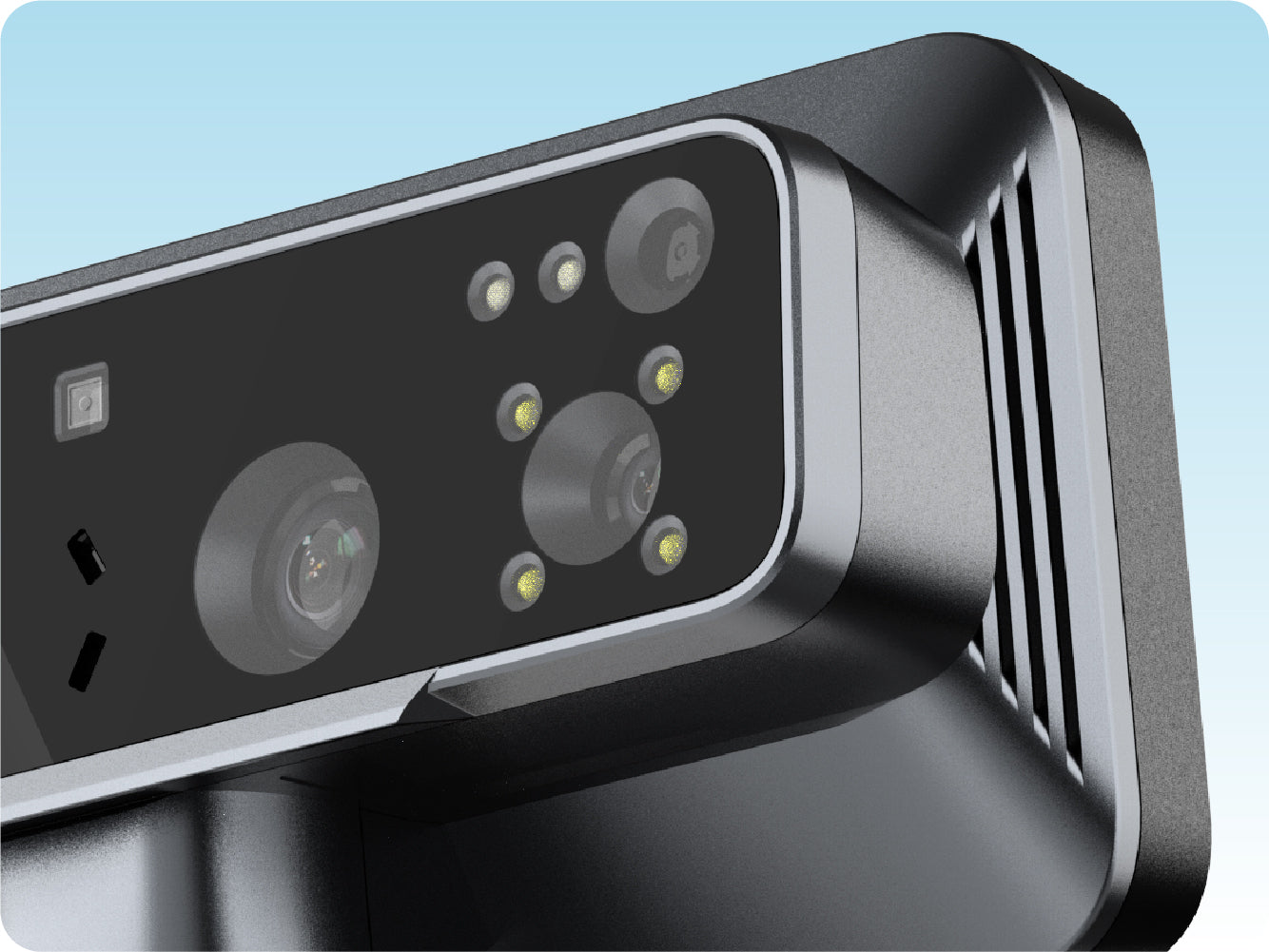

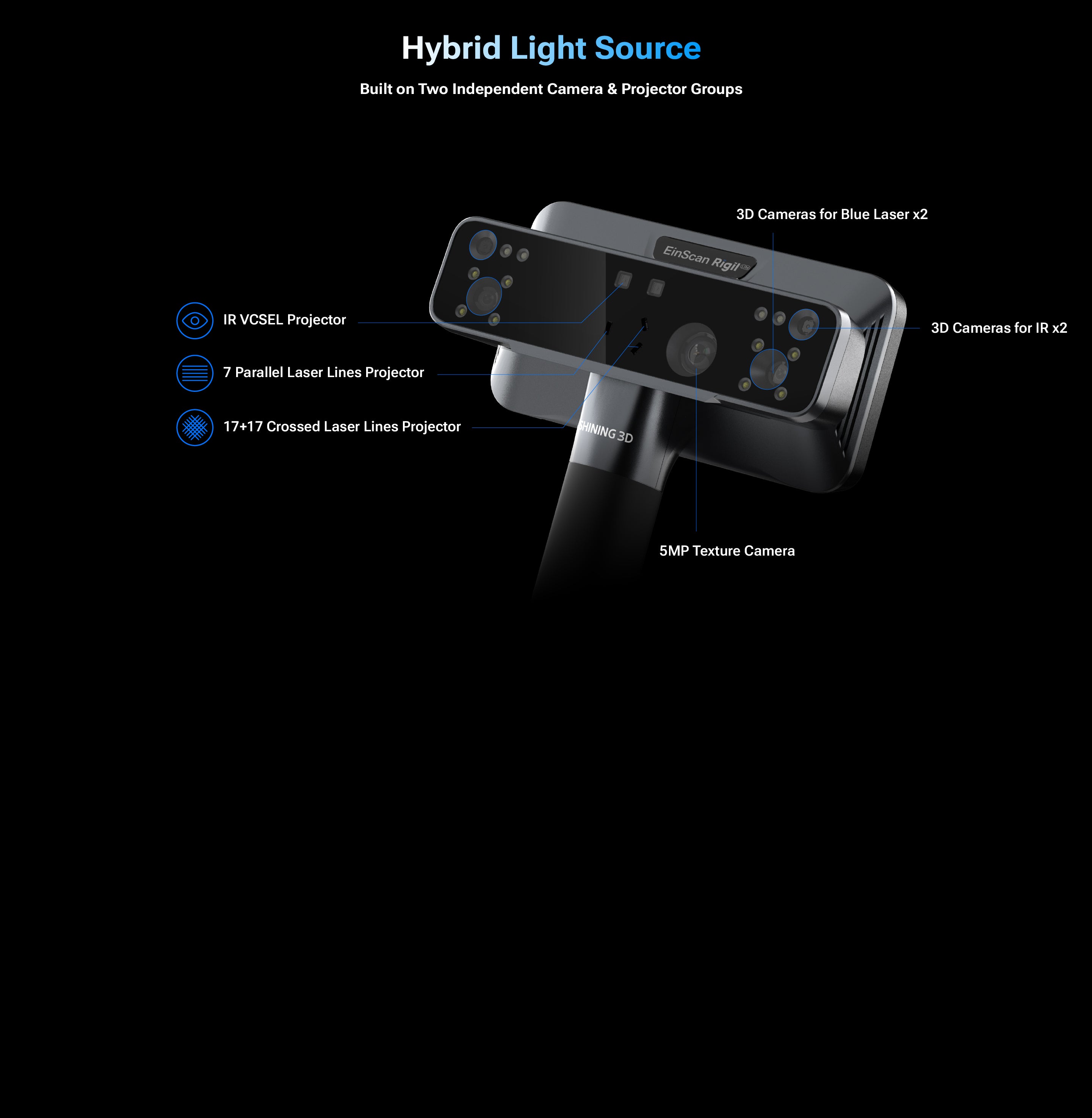

Tri-Mode Hybrid Light Source:
Marker-Free Laser Scanning:
Utilizing advanced tracking algorithms, the Rigil Lite can achieve laser-precision scanning using geometry/feature tracking, significantly reducing preparation time by eliminating the need for physical markers.
Industry-Grade Accuracy:
Delivers up to 0.05mm resolution and volumetric accuracy of 0.04 + 0.06 mm/m (in Laser HD mode), ensuring industrial-level reliability for reverse engineering and QC.
Seamless Surface Adaptability:
Engineered to scan dark and highly reflective metallic surfaces directly without the need for messy scanning sprays.
Wireless Freedom & Hot-Swappable Power:
Dual 5500mAh replaceable batteries provide long-lasting power. Supports Wi-Fi 6 for Wireless PC mode when extra computing muscle is needed for massive projects.

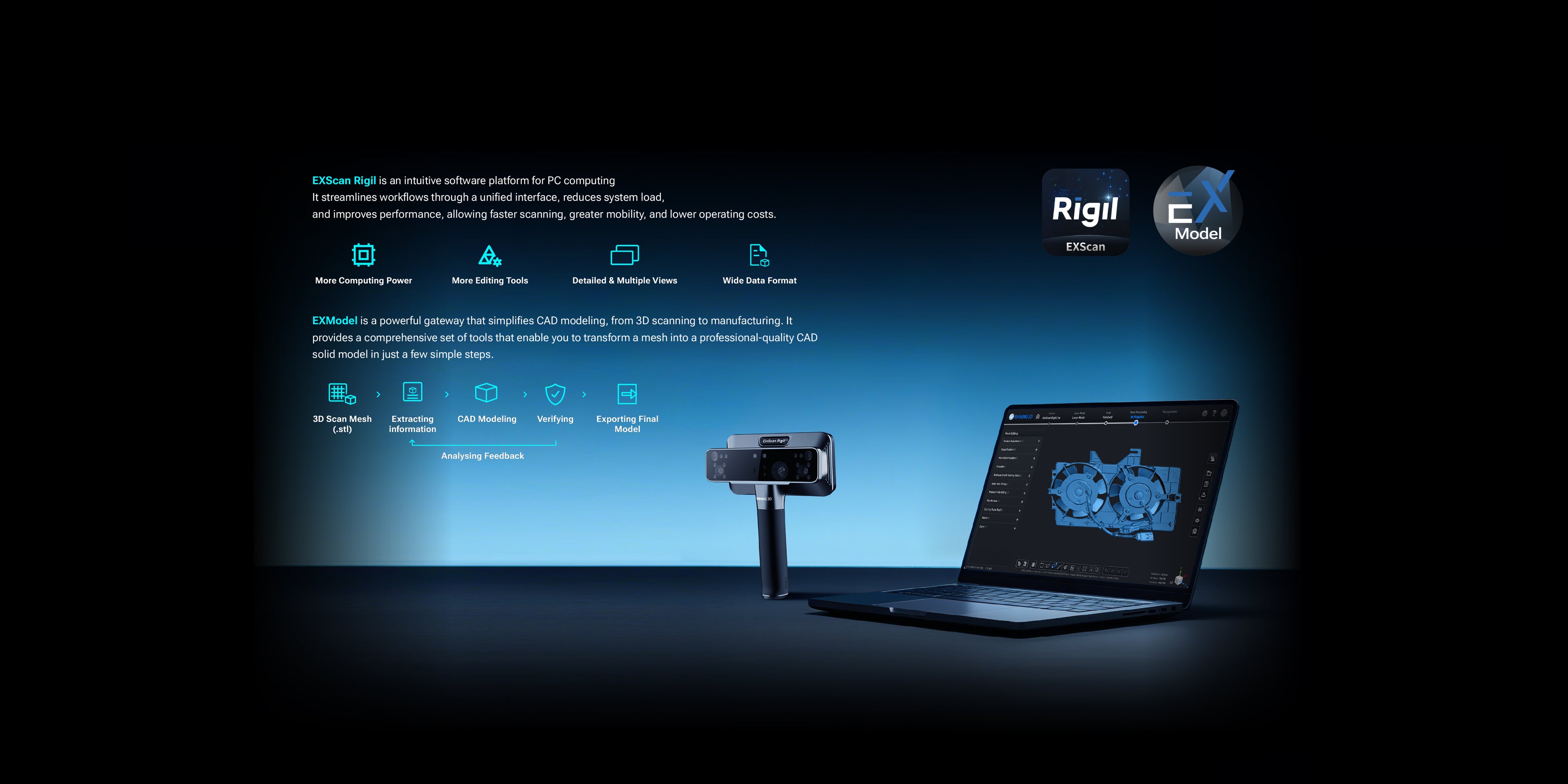

EinScan APP + EXScan Rigil + EXModel
Estimated Delivery Time (ETA): 3 to 10 working days.
For Shipping Policy please click here

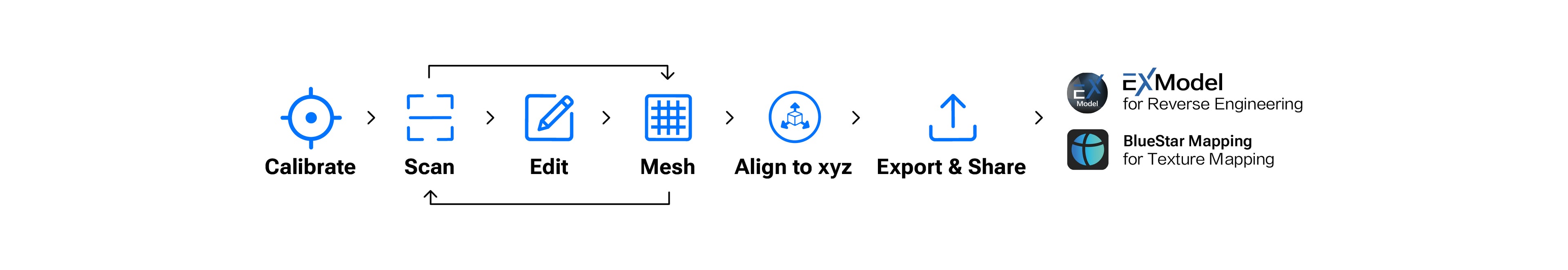

The Rigil Series represents the complete form of all-in-one 3D scanners, integrating hardware components such as the scanner, display, computing, storage, and power supply into a unified design, with the entire workflow independently accomplished on-device through software.
Tracking Is Essential, Efficiency Matters Most.
No markers. Less prep. Faster starts.

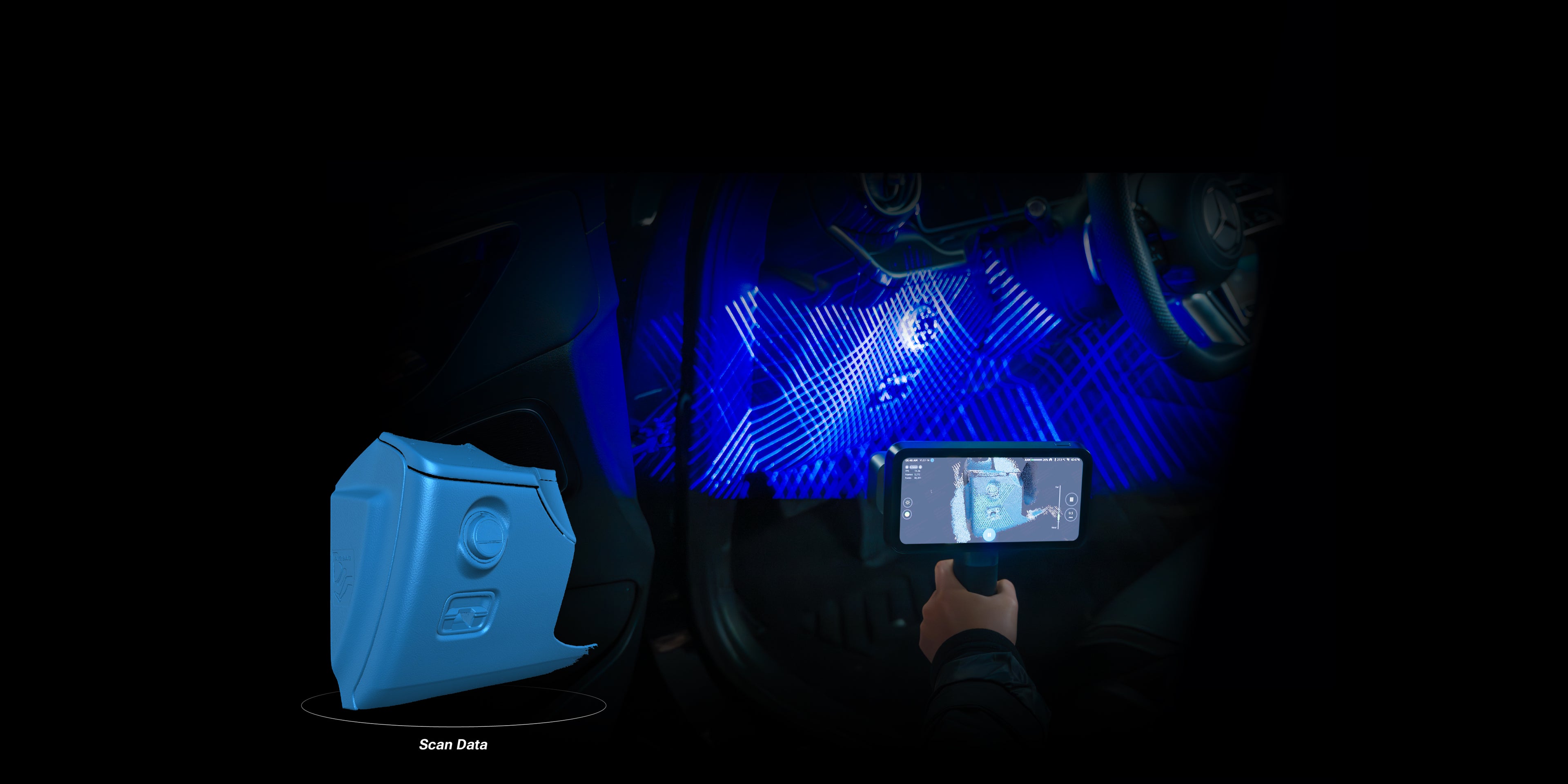

For high-featured surface, and for tight spaces or hard-to-place markers (e.g., motorcycle structures), enable marker-free laser scanning:
Start from a feature-rich area cover by sections refine details locally. Skip marker prep and keep the workflow moving.

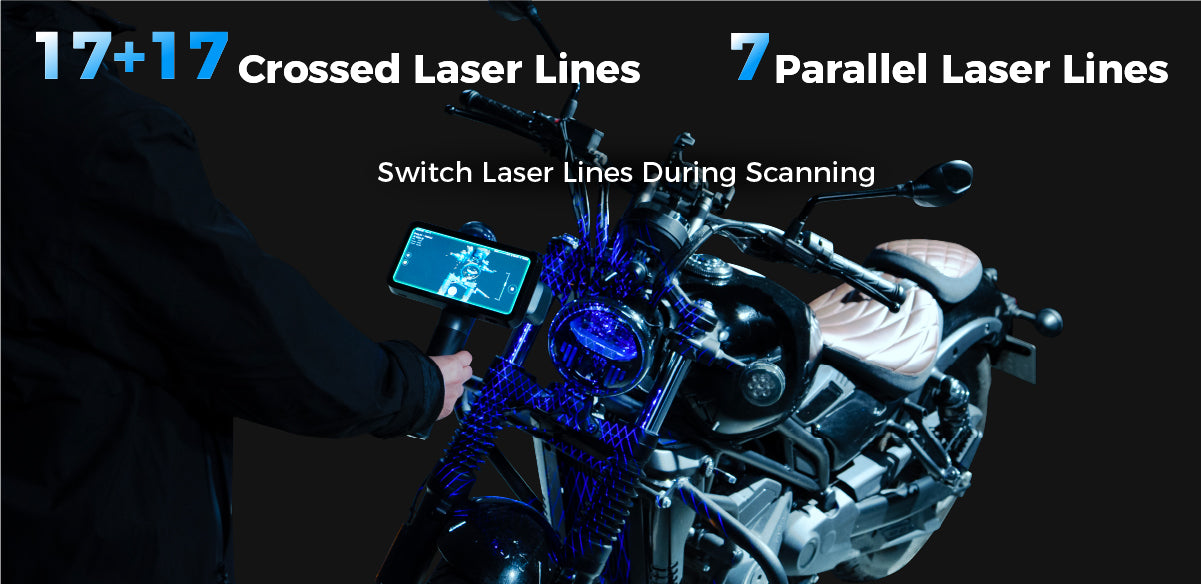

Fast Scan. Fine Scan. Switchable During Scanning.

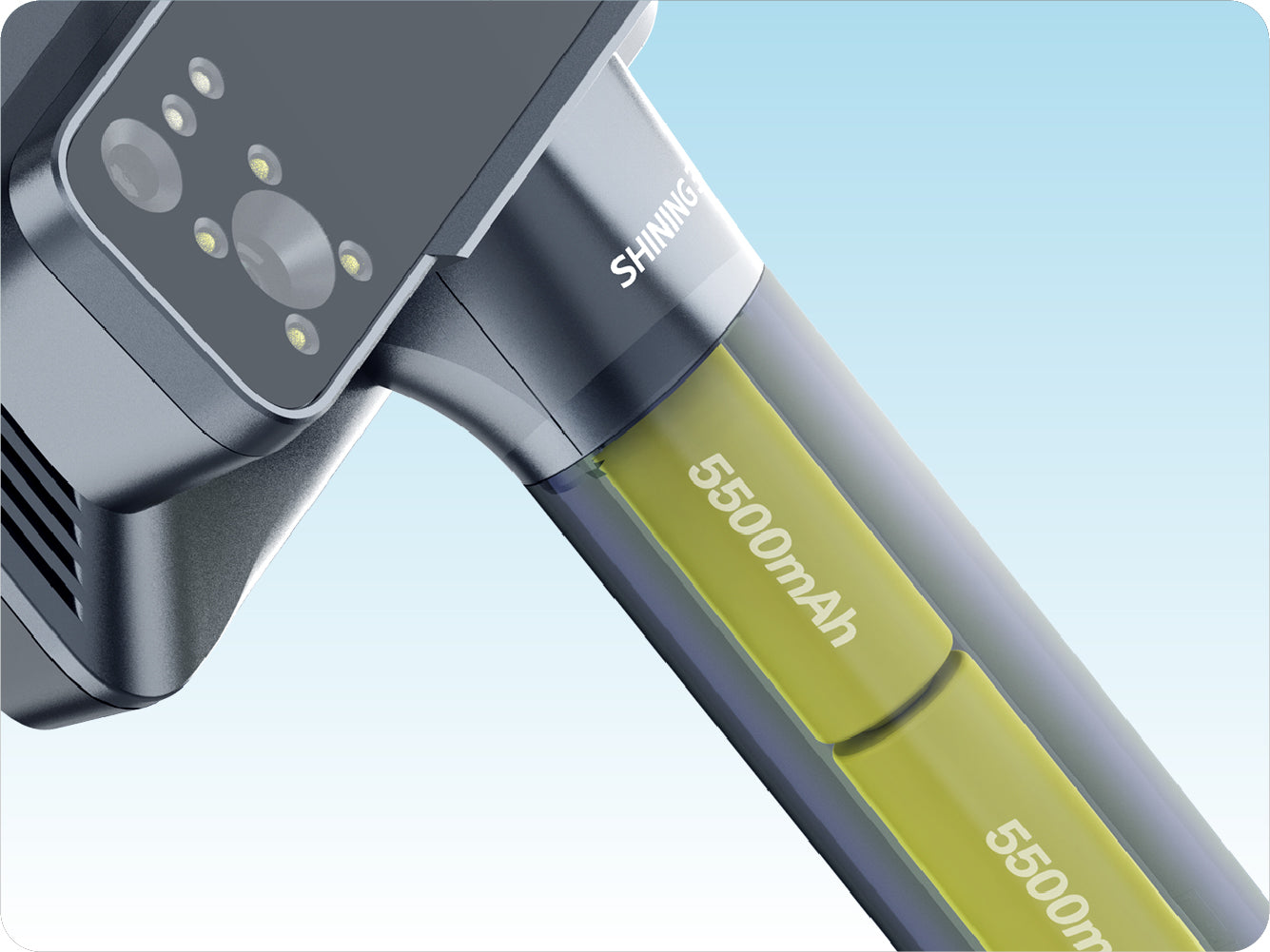

Rechargeable & Replaceable Battery
Swap and keep Scanning - no downtime, up to 3 hours of runtime
Built-in Computing
No PC required. 24GB RAM for a full on-device workflow.
Built-in W-Fi 6
Wireless inside. Freedom outside.

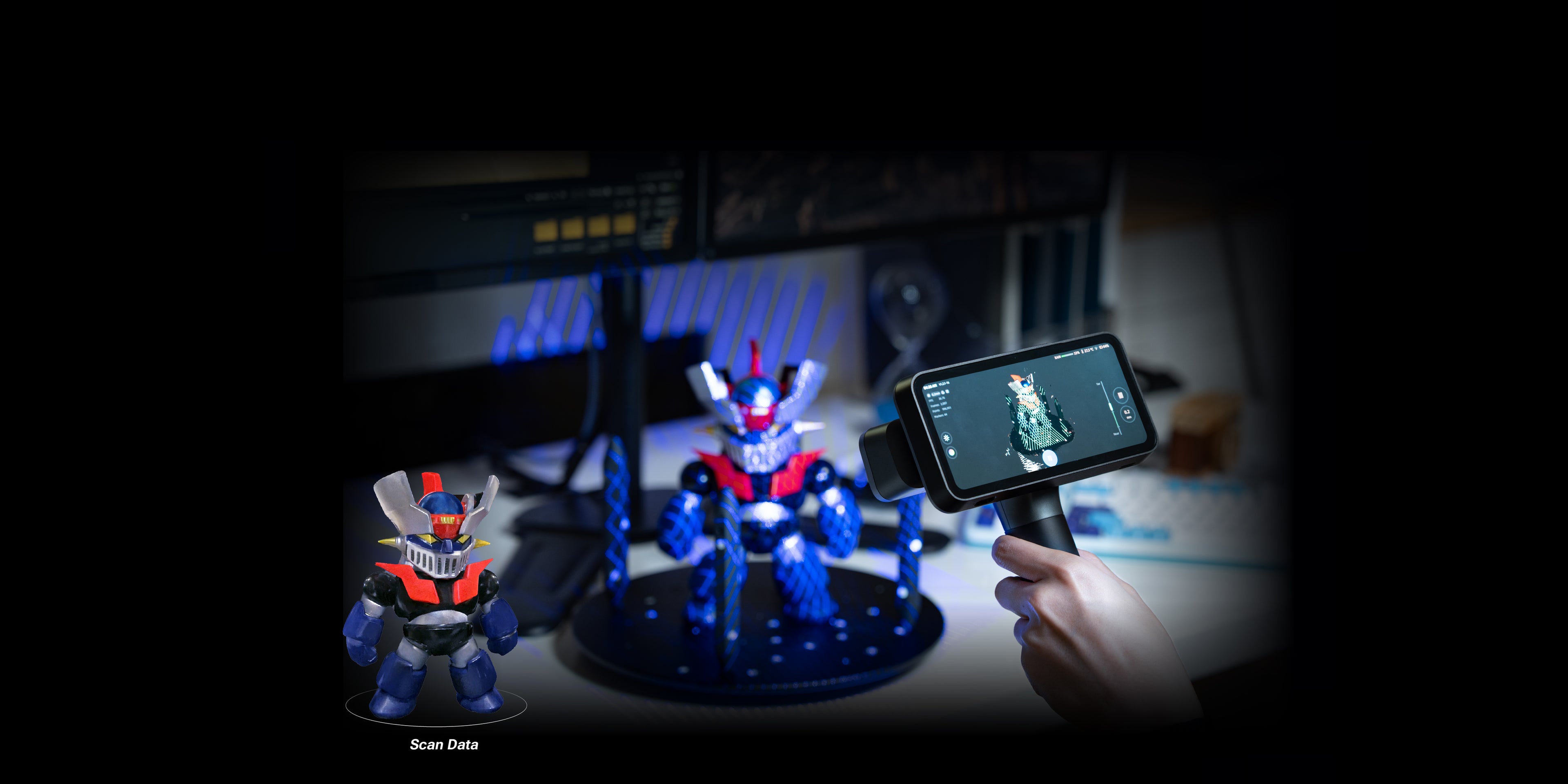

Your entire project library, on device.
Drag, Zoom. Confirm-right on screen.

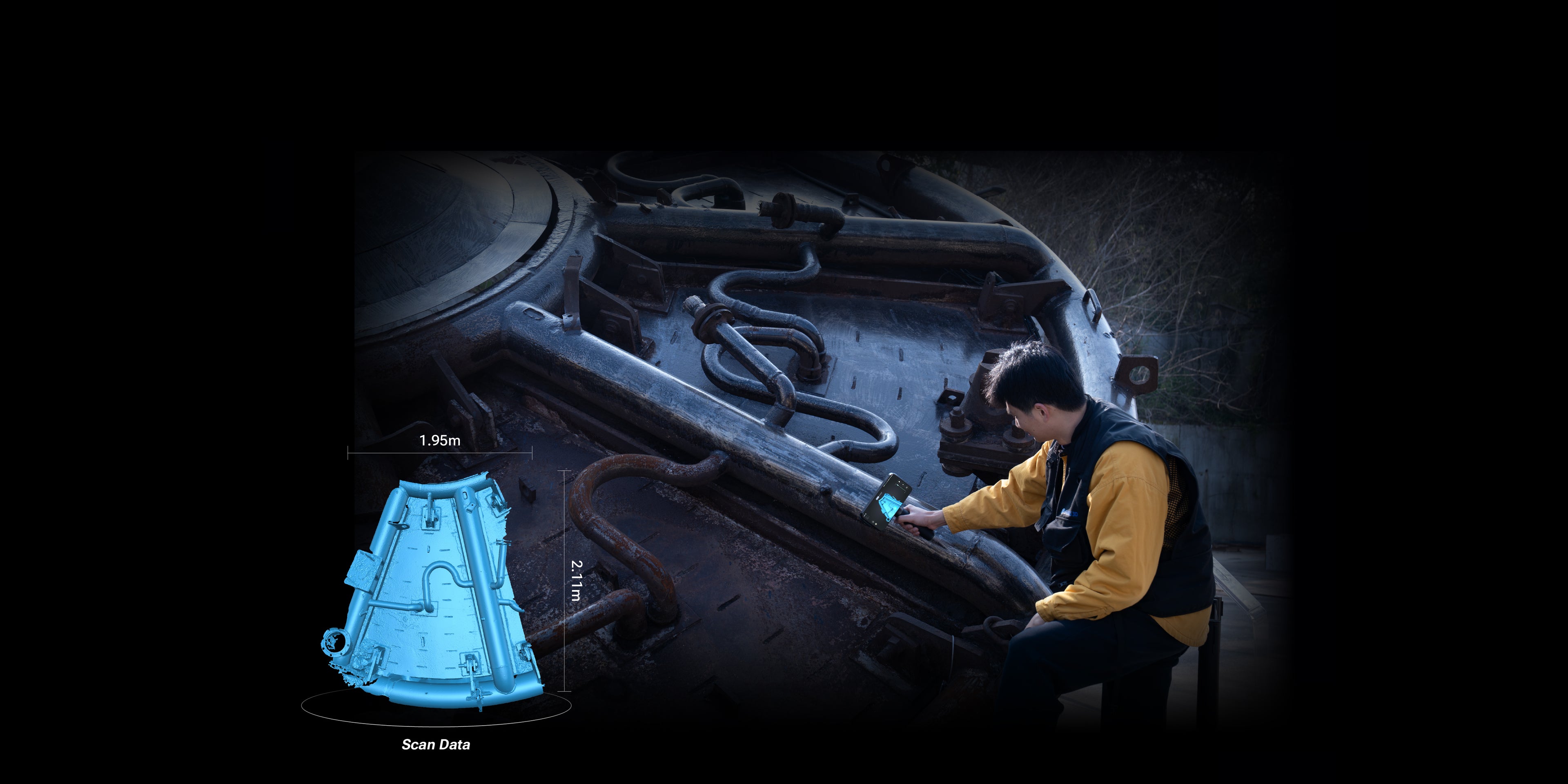

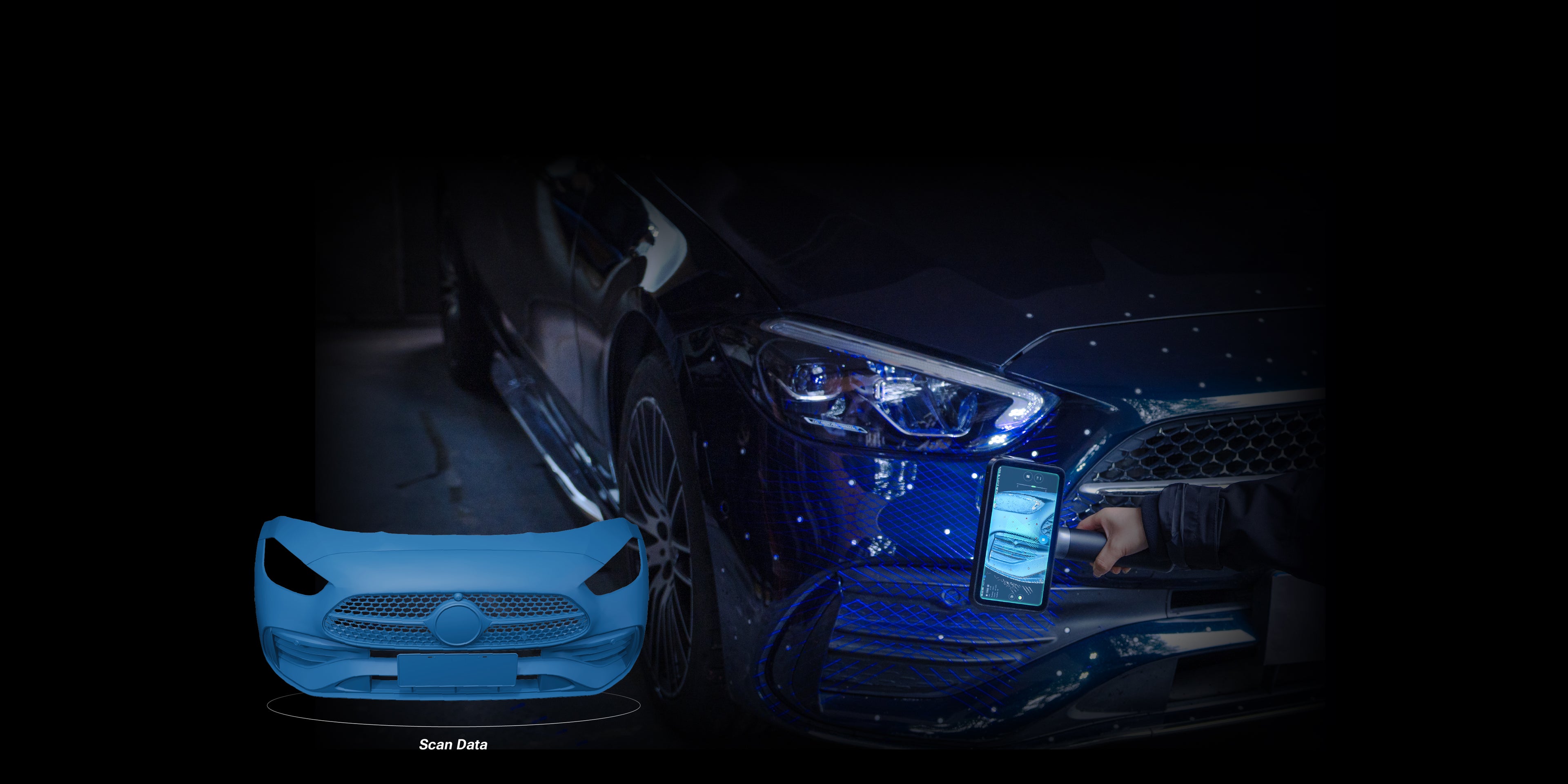

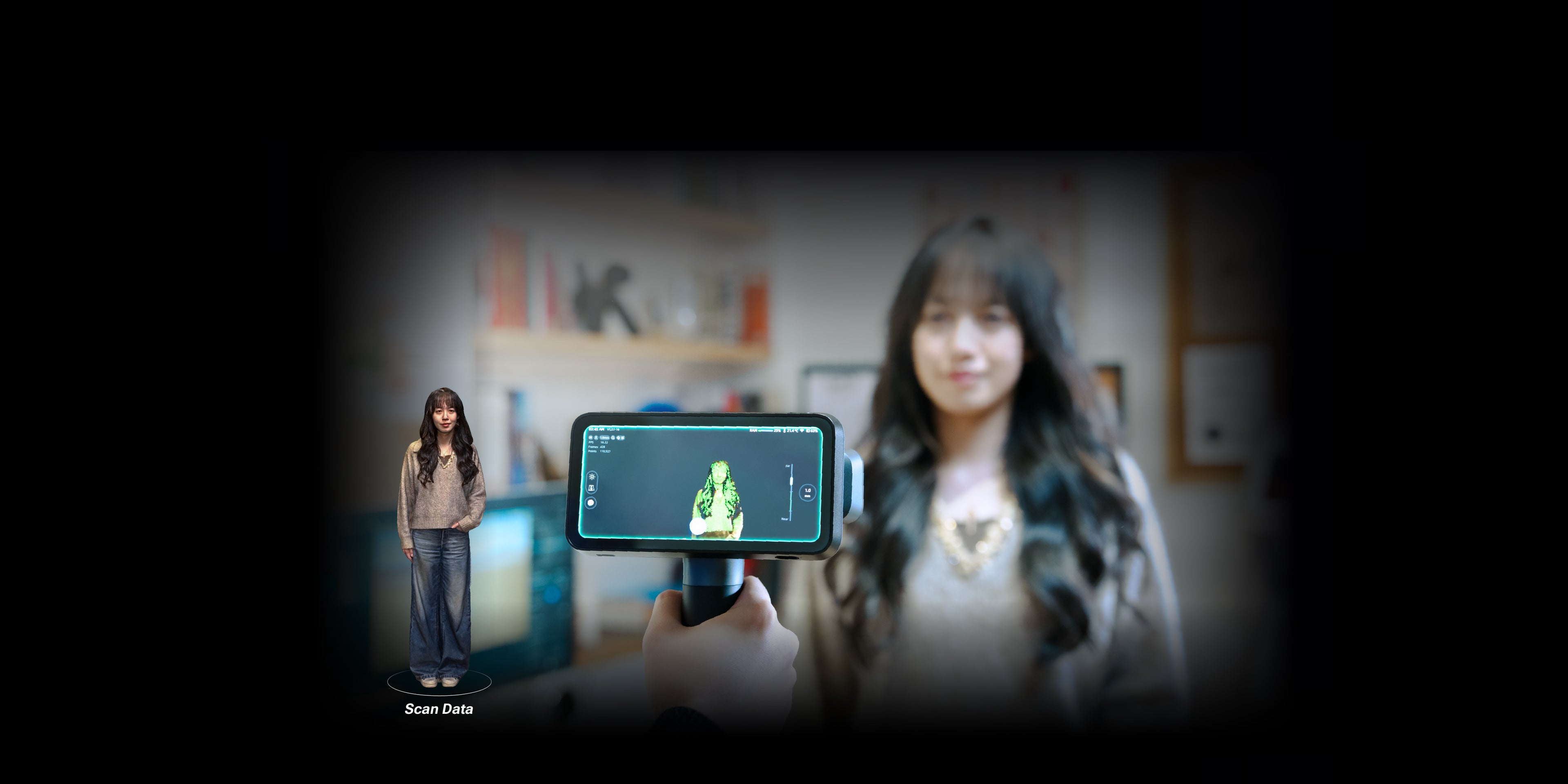

Rapid Coverage for Big Objects-Eye-Safe for Portrait Scanning.
Use IR scan for wide coverage on medium-to-large objects. It also supports eye-safe portrait scanning and reliable outdoor operation.

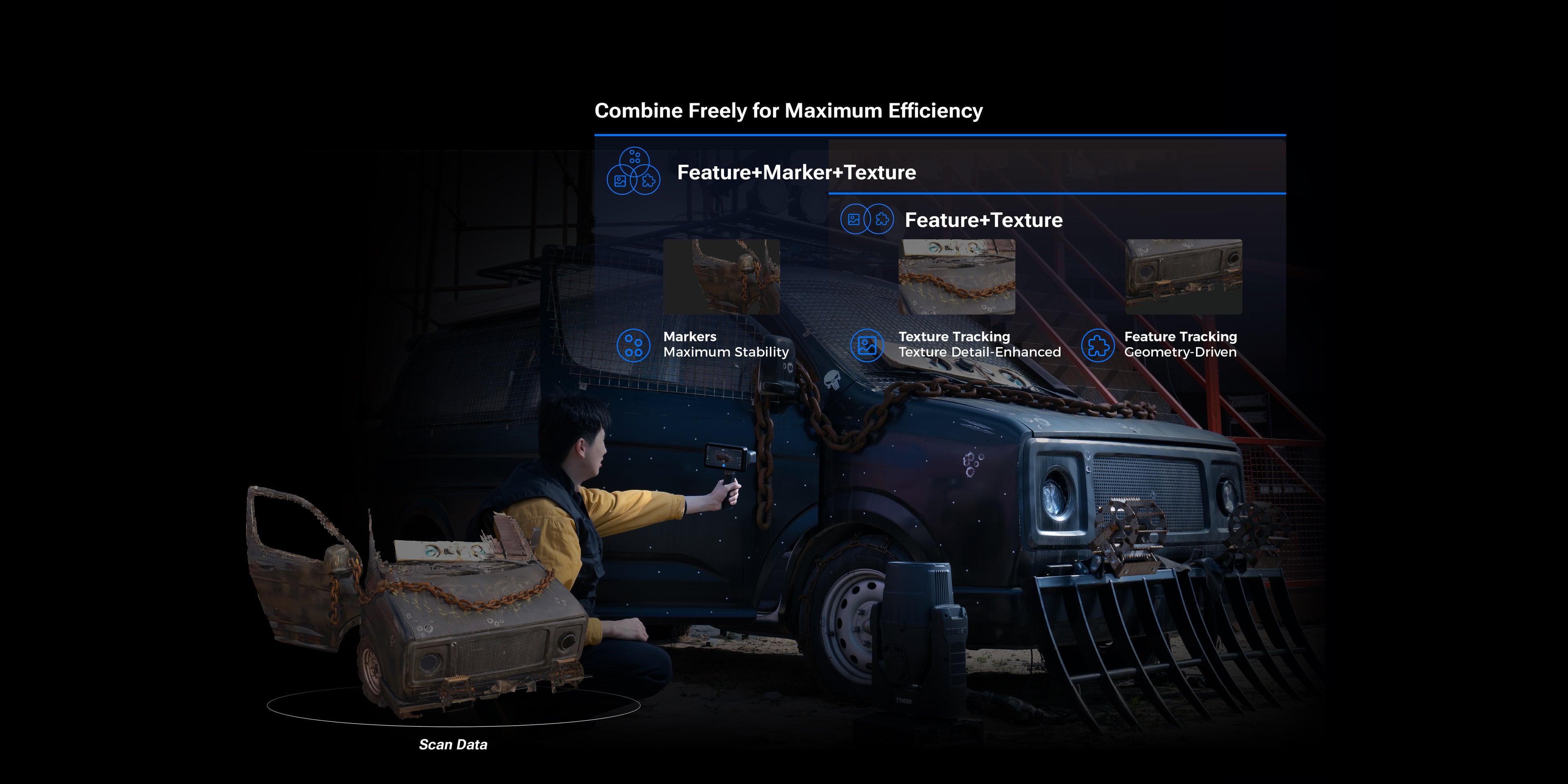

Advanced Hybrid Tracking combines Feature, Marker, Texture, and Global Marker Alignment for stable tracking across different jobs.
Bring out richer texture detail and faithful color reproduction for digital models that feel closer to the real object on screen.
*5MP texture capture is available in both Laser and IR modes.
For shiny or reflective parts, choose the reflective preset: Less prep, fewer retries-get results faster without spray.

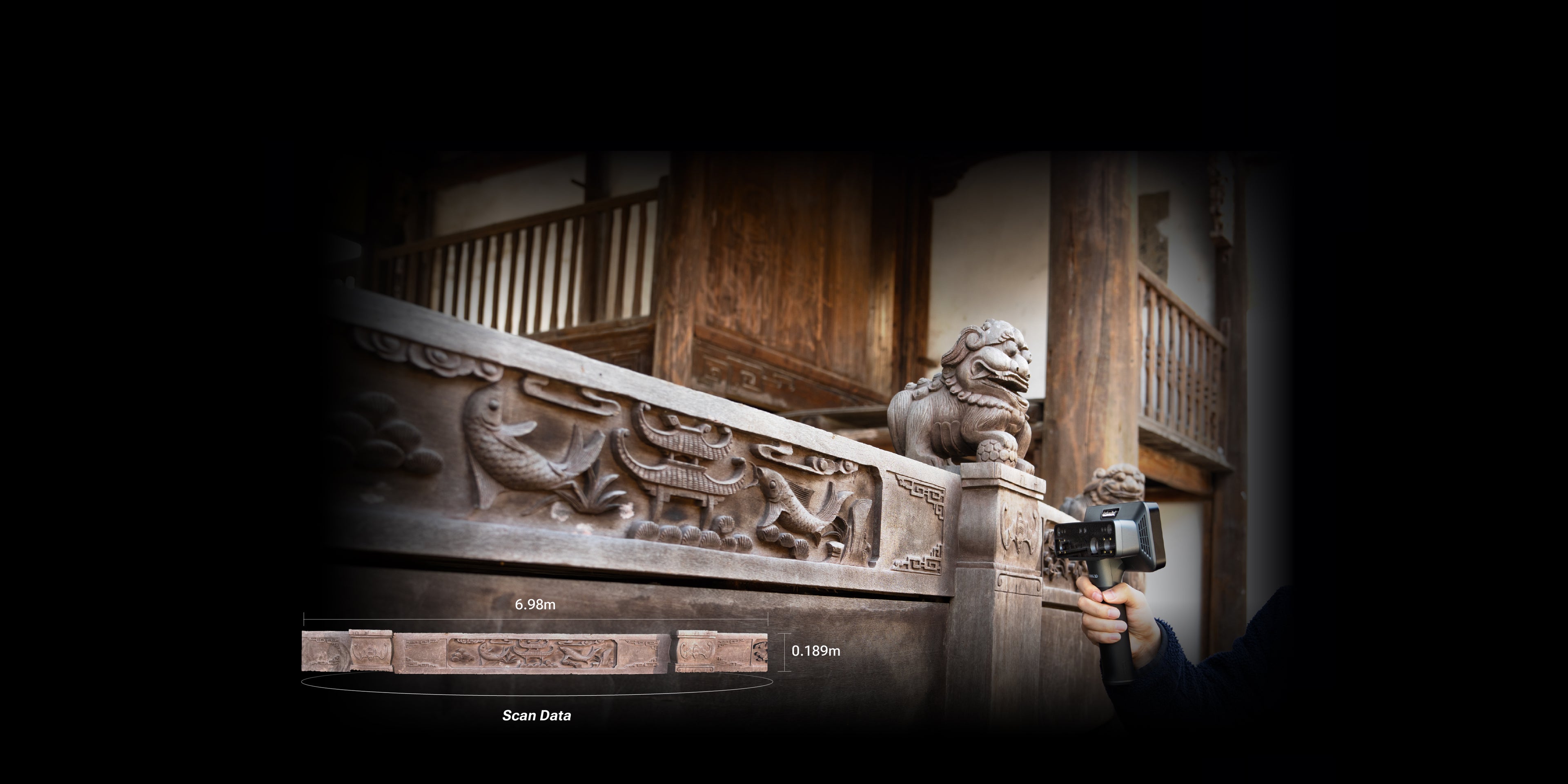

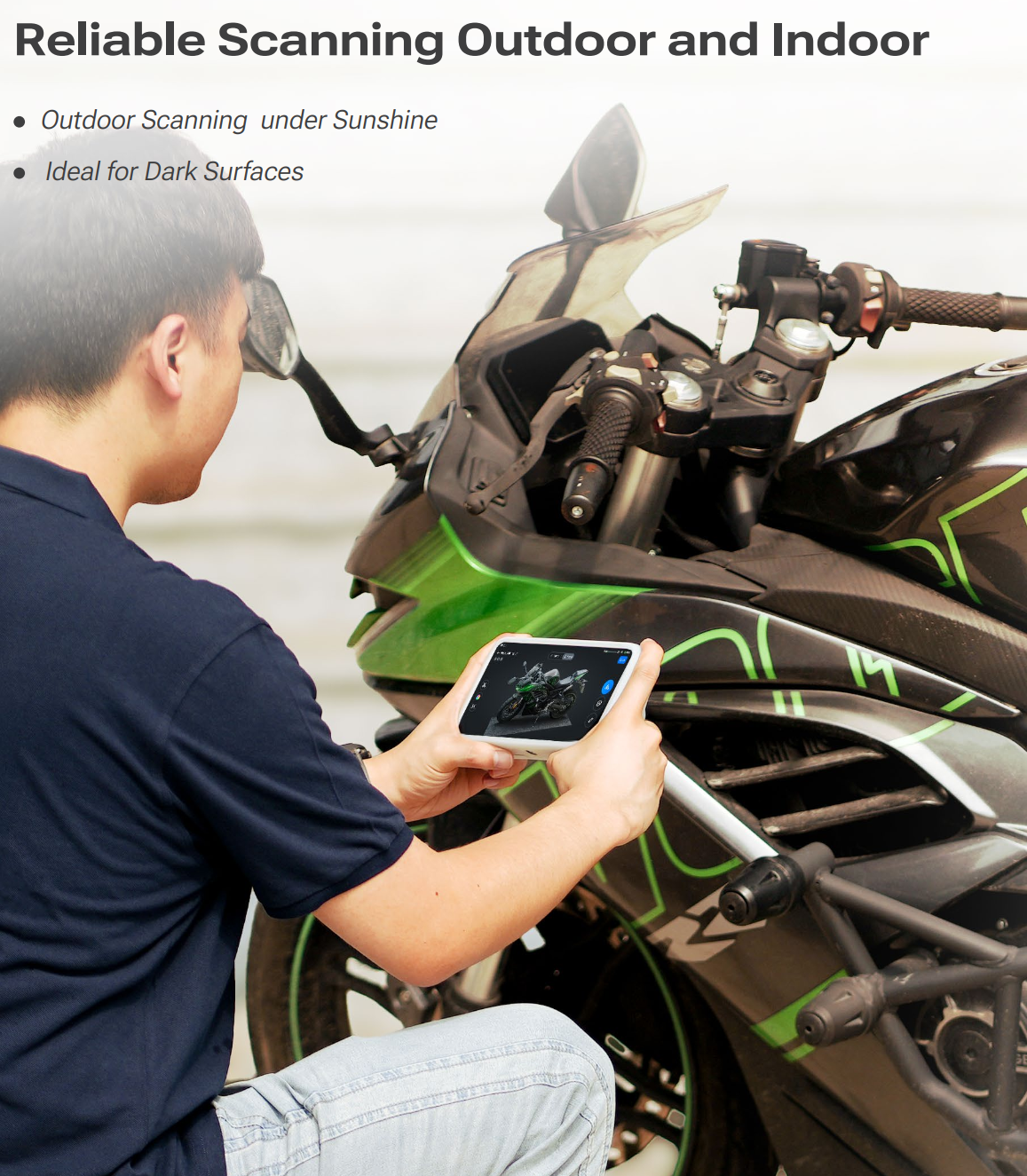

For outdoor scanning, choose the Outdoor preset.
| Feature | Description |
|---|---|
| Work Mode | Standalone / PC- Wireless / PC-Wired（for extra computing resource） |
| Scan Mode | Laser HD; IR Rapid |
| Light Source | 17+17 crossed blue laser lines; 7 blue laser parallel lines; IR VCSEL |
| Resolution | Laser HD：0.05 ~ 10 mm; IR Rapid：0.2 ~ 10 mm |
| Scan Speed | 17+17 crossed blue laser lines：2,940,000 points/s; 7 blue laser parallel lines：1,620,000 points/s; IR Rapid：16,000,000 points/s |
| Working Distance | Laser HD：170 ~ 550 mm; IR Rapid：160 ~ 1500 mm |
| Alignment Mode | Laser HD：Global Markers / Markers / Features; IR Rapid：Markers / Features / Texture(freely combinable) / Global Marker |
| Camera Resolution | 3D：2.3MP*2 1.3MP*; 2Texture：5MP |
| Output Formats | STL, OBJ, PLY, 3MF, ASC |
| Regular Edition Hardware | CPU: 8-core, 2.4GHz;RAM: 24GB LPDDR5;Storage: 64GB eMMC + 512GB SSD;6.4-inch 2K AMOLED Touchscreen |
